Plug wire stations pulling tester

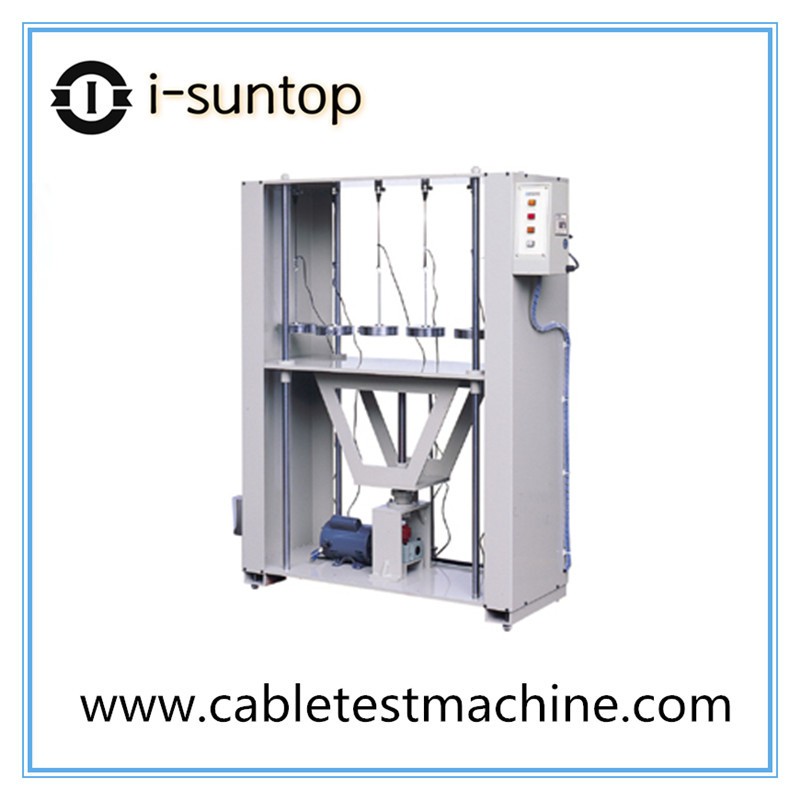

XL-CJL-238 Plug wire stations pulling tester

Test standard：UL817

Application：It is applicable to test the load resistance between the plug and the power wire and can test six specimen. The plug is attached to the upper part of the test machine, then the weight hook is on the power line, then slowly lower the tray to make the weight of the base suspended, lifting the test piece, and the pulling direction should be perpendicular to the insert.

Technical parameters：

1.table speed：530±5 mm/min　　2.load：10lb/20lb × 6 sets of combinations　3.motor：1/2 HP

4.volume：1130×480×1580 mm　　　  5.power：1∮,AC220V,6.4 A　 6.weight：320 kg
